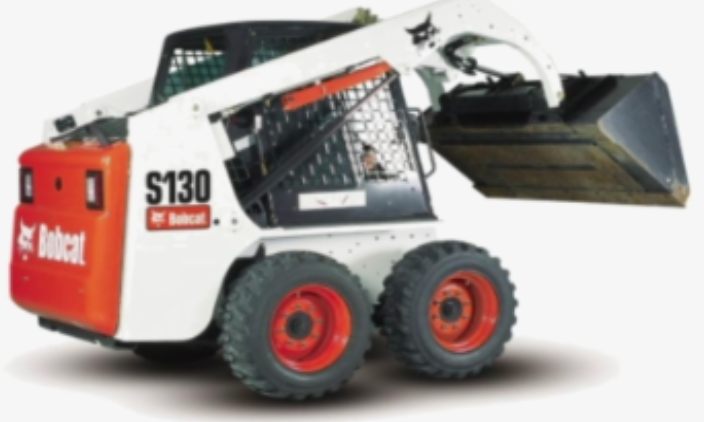

Bobcat S130 2.15 Tonne skid Steer Loader
Bobcat S130 Specifications
The V2203-M-DI-E2B-BC-3 engine in the Bobcat S130 Skid Steer Loader produces 46 horsepower (gross power). Total volume of its cylinders is 134.3 cubic inches (displacement).
Fuel capacity for the Bobcat S130 is 13.3 gallons.
The tipping angle of the Bobcat S130 skid steer loader is 2634 degrees.
It measures 10.35 feet in length with the bucket connected and 7.98 feet without. The cab of the Bobcat S130 is 6.45 feet tall. Its wheelbase was 2.96 feet long.
Technical Specifications
2.96foot Wheelbase
7.98 foot Length without Bucket
6.9 foot Clearance at Max Lift and Dump
22.6in Reach at Max Lift and Dump
10.35 foot Length including Bucket
4.89 foot in Width Over Tires
7.41in Ground Clearance
6.45 foot in Height to the top of Cabin
46hp Power
134.3 cubic in Displacement
2334 Engine Make
V2203-M-DI-E2B-BC-3 Engine Model
7.3mph Maximum Speed
7.3mph Operating Speed
13.3gal Fuel Capacity
1300lb Rating of operating load
2634 degrees Tipping Angle
16.9gal/min Pump Flow Capacity
2600psi Relief Valve Pressure
